Lifts Boom

135' Boom Lift Str JLG 1350SJP


	Image for reference only Actual item may look different Click on image for larger view

Manufacturer: JLG

Model: 1350SJP

Daily: Request Quote

Weekly: Request Quote

Monthly: Request Quote

Quantity: for a period of
day(s) week(s) month(s)

Additional Information

Weight
45,000 lb / 20,411 kg
Power Source
Diesel Engine Deutz BF4M 2011 74.9 hp / 55.8 kW
Fuel Tank Capacity 31 gal. / 117.35 L
Hydraulic Reservoir 55 gal. / 208.2 L
Auxiliary Power 12V DC
Noise Level 70 dBa @ 7 meters

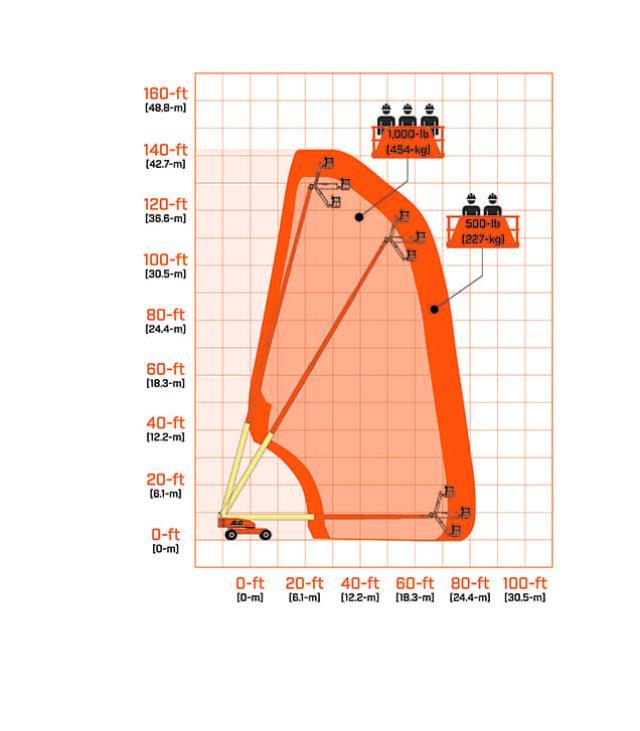

Reach Specifications
Platform Height 135' / 41.15 m
Horizontal Reach 80' / 24.38 m
Swing 360 Continuous
Platform Capacity-Restricted 1,000 lb / 454 kg
Platform Capacity-Unrestricted 500 lb / 227 kg
Platform Rotator 180
JibPLUS
JibPLUS - Length 8' / 2.44 m
JibPLUS - Horizontal Motion 180
JibPLUS -Vertical Motion 130 (+75, -55)
Chassis
Drive Speed 3.25 mph / 5.2 kmph
Gradeability 45%
Turning Radius (Inside)
Turning Radius (Inside) - Axles Retracted 14' 5" / 4.39 m
Turning Radius (Inside) - Axles Extended 8' / 2.44 m
Turning Radius (Outside)
Turning Radius (Outside) - Axles Retracted 22' 6" / 6.86 m
Turning Radius (Outside) - Axles Extended 19' 4" / 5.89 m
Crab Steer Ratio 1:1
Axle Oscillation 12" / 30 cm
Tire Size 445/50D710
Tire Type Foam-Filled
Dimensions
Platform Size 36 x 96" / 0.91 x 2.44 m
Overall Width-Axles Retracted 8' 2" / 2.49 m
Overall Width-Axles Extended 12' 6" / 3.81 m
Tailswing 5' 6" / 1.67 m
Stowed Height 10' / 3.05 m
Stowed Length 38' 11" / 11.86 m
Wheelbase 12' 6" / 3.81 m
Ground Clearance
Ground Clearance - Axle 12" / 30 cm
Ground Clearance - Chassis 25.5" / 65 cm
Weight 45,000 lb / 20,411 kg
Max. Ground Bearing Pressure* 107 psi / 7.52 kg/cm
* Ground bearing pressure applies to standard tires.
1. Certain options or country standards increase weight.
2. Capacity is limited to 500 lb when JibPLUS is extended horizontally.
3. Ratio of forward travel to lateral travel.

***PRICING & AVAILABILITY IS SUBJECT TO CHANGE***

* Please call us for any questions on our 135 foot boom lift str jlg 1350sjp rentals in North Dakota and North Central Minnesota.
